Helios M1/100 MiniVent small room fan
The Helios M1/100 MiniVent is the quietest axial bathroom fan in our range: at low level its noise level is 25 dB(A) at a distance of 3 metres, and it moves 75 cubic metres of air per hour. At high level its volume flow is 90 cubic metres per hour at nominal width NW 100, which is sufficient to ventilate an average bathroom of 6–10 square metres or a WC.
It is developed in Germany by Helios, its impeller runs on ball bearings, the backdraught shutter is fitted as standard in its connection spigot, and its completely closed front facade conceals the dirty fan opening. With protection category IPX5, it can also be installed near the shower. Our expert staff will help you with sizing and choosing accessories.
Helios M1/100 MiniVent: our quietest and most beautiful axial fan
The Helios M1/100 MiniVent axial bathroom fan is the premium class of the German manufacturer's small room fans, and it is also the quietest unit in our own range. At low level it moves 75 cubic metres of air per hour, and in this mode its noise level is 25 dB(A) at a distance of 3 metres — this is thanks to Helios ultraSilence technology. At high level its volume flow is 90 cubic metres per hour at nominal width NW 100, which is sufficient to ventilate an average bathroom of 6–10 square metres or a WC. If the air has to pass through a duct and an external shutter, this figure is lower: the manufacturer's figure is 60 cubic metres per hour at 31 pascals of back pressure.

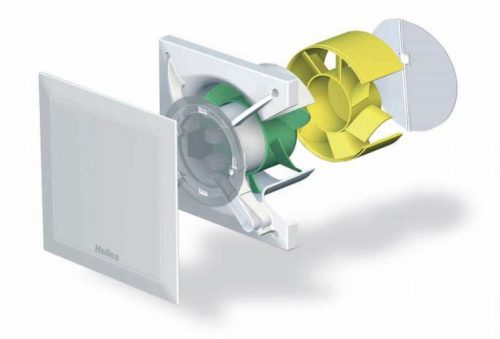

This is a premium class, sophisticated unit. We recommend it where every item, from the tiles and sanitary ware to the doors and windows, has been carefully selected, and the ventilation cannot be an exception. The M1 series is developed in Germany by Helios; its front facade is completely closed, a multi-award-winning design, and air flows in from all sides — this conceals the dirty fan opening, and the smooth-surfaced facade is easy to clean with a single wipe.
Data sheet
The official Helios catalogue page contains the technical data for all three sizes of the MiniVent M1, the performance curves, the dimensional drawings and the wiring diagram numbers. It is useful for electricians, architects and anyone looking for precise data for the installation.
Did you know? If the bathroom has a suspended ceiling and you want to route the ventilation duct above the ceiling, this is not the right choice — that calls for a centrifugal fan with a recessed casing, even if the duct run is short. The M1/100 is designed to ventilate through the wall, via a short duct, directly outdoors.
Technical data
Comparison of the four Ø100 versions — the first column is this product
| M1/100 | M1/100 N/C | M1/100 F | M1/100 P | ||
|---|---|---|---|---|---|
| Ref. no. | 06171 | 06172 | 06175 | 06174 | |
| Version | Standard model with two speed levels | Turn-off delay and interval mode | Humidity control function | Presence detector | |
| Flow rate free blowing | m³/h | 90 / 75 | |||
| Volume flow at 31 Pa resistance | m³/h | 60 | |||
| Maximum pressure | Pa | 45 | |||
| Power consumption | W | 9 / 5 | |||
| Rated current | A | 0.06 / 0.04 | |||
| Sound pressure level at 3 m | dB(A) | 30 / 25 | |||
| Speed | 1/min | 2650 / 2250 | |||
| Impeller diameter | mm | 92 | |||
| Connection spigot | mm | Ø100 | |||
| Voltage / frequency / phase | V / Hz | 230 / 50 / 1 | |||
| Turn-off delay time, adjustable | min | – | 6, 10, 15, 21 | 6, 12, 18, 24 | 6 |
| Interval mode, adjustable | h | – | 0, 8, 12, 24 | – | – |
| Start-up delay | s | – | 0, 45, 90, 120 | 0 or 45 | – |
| Humidity limit value, adjustable | % | – | – | 60, 70, 80, 90 | – |
| Backdraught shutter | Fitted as standard, removable | ||||
| Electrical supply line NYM-O | mm² | 3 × 1.5 | 4 × 1.5 | 4 × 1.5 | 3 × 1.5 |
| Protection category | IPX5, protection class II | ||||
| Max. air flow temperature | °C | +40 | |||
| Weight | kg | 0.80 | |||
Dimensions
All dimensions in millimetres
The front facade measures 147 × 147 mm and projects 35 mm from the wall. The connection spigot is Ø98 mm, so it fits a 100 mm duct. The unit is installed 96 mm deep in the wall; in case of restricted space conditions, the guide wheel can be removed, which reduces the installation depth to 52 mm. The drilling distance of the fastening screws is 116 mm.
Performance curve
Click the image to enlarge
The curve shows how much air the fan delivers as a function of back pressure, calculated for an air density of 1.20 kg/m³. At high level it delivers 90 cubic metres per hour free blowing and 60 cubic metres per hour at 31 pascals of back pressure, and its maximum pressure is 45 pascals. The longer the duct run and the more bends it contains, the greater the back pressure — which is why this fan is designed for a short duct run led out through the wall.
Why do we recommend it?
Two speed levels, 5 watts at low level
Every M1/100 comes with two speed levels. At low level its power consumption is 5 watts at a volume flow of 75 cubic metres per hour — if it runs for 3 hours a day, this comes to about 5.5 kilowatt hours a year. At high level it is 9 watts and 90 cubic metres per hour.
The backdraught shutter is fitted as standard
The connection spigot contains the tight-closing backdraught shutter, which is not standard equipment in every small room fan. When the fan stops, the shutter closes, so no cold air is drawn into the room through the duct. The shutter is removable if the installation requires it.
Ball-bearing motor, in any mounting position
The ball bearings are designed for 40 000 operating hours, so installation in any position, even directly in the ceiling, is possible. The motor has thermal overload protection, and the manufacturer describes it as maintenance-free — however, this fan also needs regular cleaning of the impeller; without it, any fan will fail sooner.
Also for wet room zone 1
It complies with jet water protection IPX5 and protection class II, so it can be installed in wet room zone 1 according to DIN VDE 0100-701, i.e. near the shower and the bath as well. The electrical connection is made easier by screwless terminals and the circumferential cable storage space of the casing.
Accessories for this product
For the Ø100 installation, from our online shop
Frequently Asked Questions
At high level it moves 90 cubic metres of air per hour free blowing, which is sufficient to ventilate an average bathroom of 6–10 square metres or a WC. In practice, the back pressure of the duct run and the external shutter reduces this figure: the manufacturer's figure is 60 cubic metres per hour at 31 pascals of back pressure. If the room is larger, or you want more intensive extraction, call us — we will help you with sizing.
Yes. The standard M1/100 comes with two speed levels, and switching between them requires a two-speed operating and speed switch 0-1-2; the manufacturer specifies a 3 × 1.5 mm² cable for its connection. Helios's own MVB switch is designed for this, and you can also find it in our shop. If you only use one speed level, a conventional light switch is enough.
Its function is the same: it ventilates. The difference lies in the noise level, the build, the design and the materials used. At low level the M1/100 has a noise level of 25 dB(A) at a distance of 3 metres, its casing and front facade are made of high-quality plastic, its impeller runs on ball bearings, and the backdraught shutter is fitted as standard in its spigot. It belongs where every item, from the tiles and sanitary ware to the doors, has been chosen with care.
The ball-bearing motor is designed for 40 000 operating hours, so the unit works in any mounting position — even directly in the ceiling. However, if the bathroom has a suspended ceiling and you want to route the ventilation duct above the ceiling, this is not the right choice: that calls for a centrifugal fan with a recessed casing, even if the duct run is short.
No. An axial fan cannot cope with the pressure in the shared riser: it either pushes the air back into the room or cannot extract it. A shared riser needs a centrifugal fan designed for ducted systems. The M1/100 is designed to ventilate through the wall, via a short duct, directly outdoors.
Yes. The unit complies with jet water protection IPX5 and protection class II, so it can also be used in zone 1 according to DIN VDE 0100-701 — that is, in the part of the wet room close to the shower. The electrical connection should be carried out by a qualified electrician.
